Club, Stage Floor Monitors TCS TM10x
QR Code Link to This Post

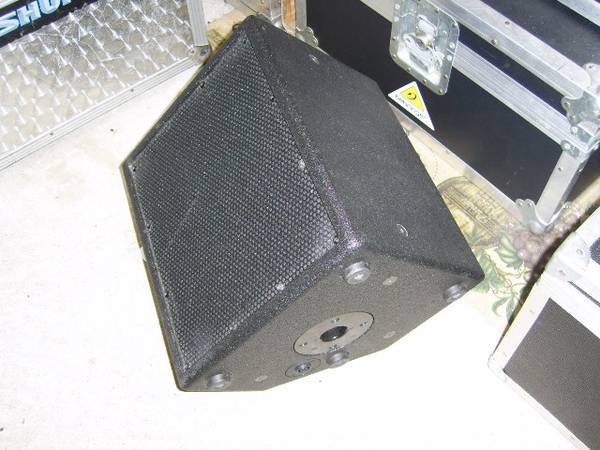

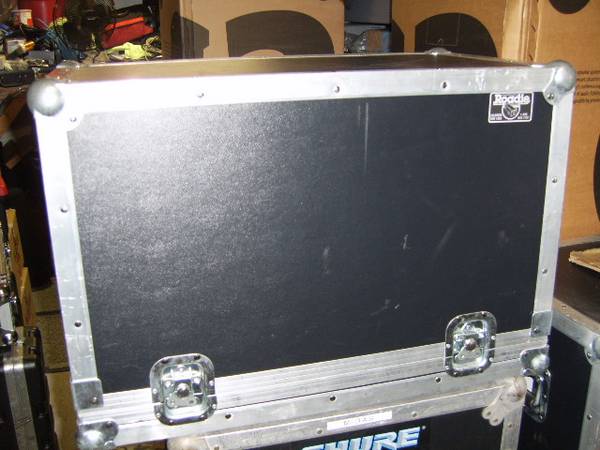

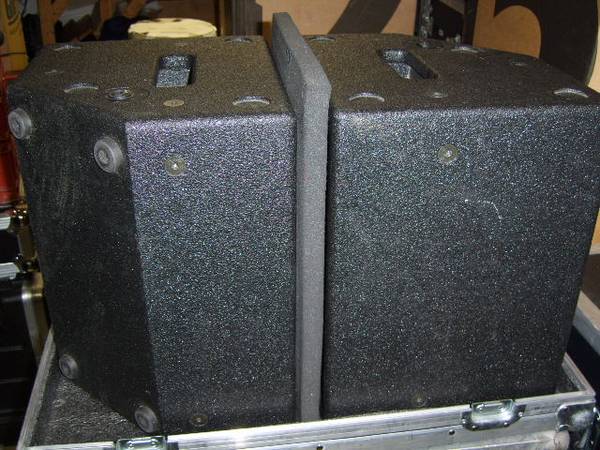

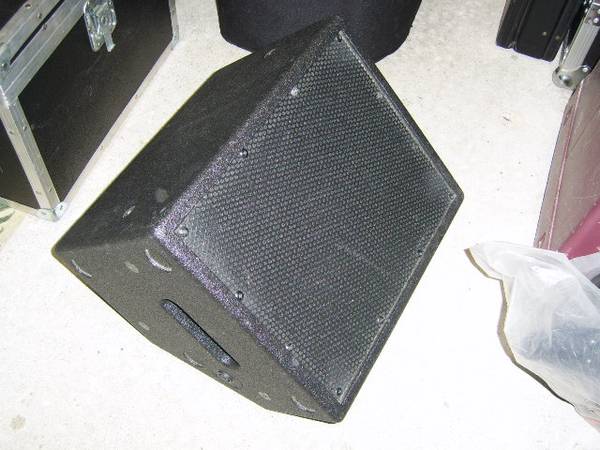

Professional stage floor monitors TCS TM10x, set of 2 in the road case with B&C 10NCX neodymium coax 10" (3" VC) LF dirver and 2" (2.5" VC) HF driver. Very low profile for small stages and limited spaces.
I have 3 sets for sale. $1000 per set OBO.
DESCRIPTION
The TM10X is a multipurpose (main/stage monitor/install) light weight, full range, Coaxial loudspeaker system to be used in many sound reinforcement applications.
The TM10X features a 10" high-powered B&C neodymium coaxial transducer mounted in a vented enclosure. The TM10X low frequency and high frequency sections are physically time aligned due to the shared motor structure. The TM10X can be used in bi-amp or single-amp mode.
The TM10X includes a pole mount cup for use on speaker stands or satellite on subwoofer. 12 fly points (3/8"-16 captive nuts) are included for suspending in installations. The TM10X is Omni Mount compatible.
APPLICATIONS
Stage monitor, and fixed install. For use in:
Ballrooms Clubs
Delay systems
Theaters
Houses of Worship Small outdoor events
Frequency Response +/- 3dB 60Hz to 18kHz
Usable Low Frequency 55Hz
Sensitivity (1 W/1 M) 101dB
Calculated Max SPL (1M) 127dB
Impedance 8 ohms BiAmp LF 8 ohms HF 8 ohms
Cabinet Type Vented multi-purpose slant back
Enclosure Structure 13 ply Baltic Birch
External Coating Duratex
Grille Material Foam backed 16 Ga. powder coated perforated steel
Power Handling LF 200Wrms/400Wprogram HF_50Wrms/100Wprogram
Nominal Coverage Horizontal 70 degrees Vertical 70 degrees
Dimensions: Height 15" Width 13" Depth 13" Weight 20 lbs
Replacement Parts B&C Speakers 10NCX
Call or text me if interested NineOneSeven-544-3754
