Fender Prosonic Amp MINT Clean Bill of Health - $950 (BELLEROSE MANOR)
QR Code Link to This Post
This starts with a more powerful Bassman section and then Mesa Boogie style MK II OD
All Restoration and safety work Performed by by Lane Sparber (If your not familiar with his work, Check out his tutorials on Facebook)

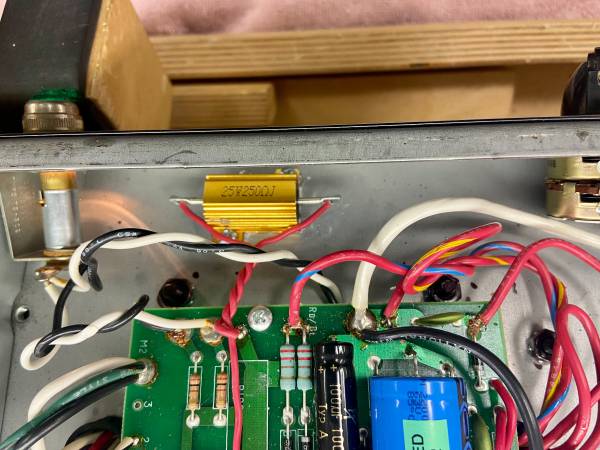

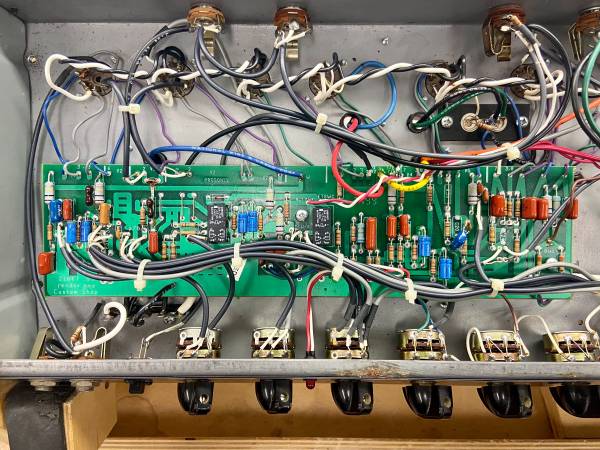

Complete recap and Resistor relocation
NEW Output tubes, Vintage preamp tubes (7025 in V1 and Phase inverter, Quieter and loads of gain)
New Power Cord, New reverb tank (I have the Original and it works) New Channel switching pedal and speaker cable)
Clean to Beast!!!! NEW FENDER COVER
Model/Circuit Number:
Years of Production: 1996 – Present
Configuration: Combo
Controls: Black, forward facing w/ white screened labels, controls numbered 1-10
Knobs: Black Pointer
Schematics
Prosonic
Faceplate
Front: In, In, Channel Sw, Vol, Gain 1, Gain 2, Treb, Bass, Mid, Master, Reverb – Pilot Lamp

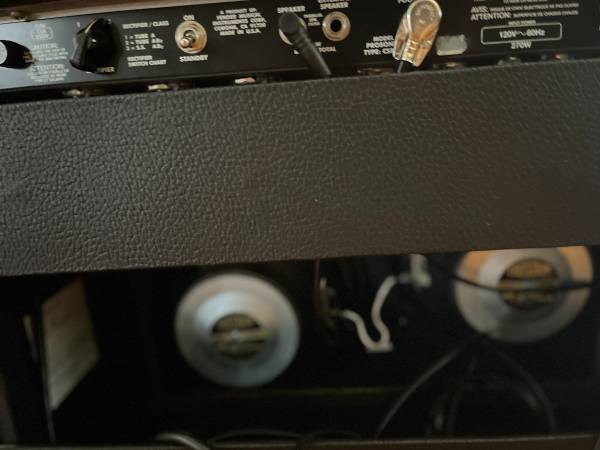

Rear: Rectifier Sw, Power Sw, Standby Sw, Ex. Speaker Jack, Footswitch
Cabinet
Dimensions: 18½ x 24 x 10½
Hardware: Medium Chassis Straps 4 5/8”
Handle: Black strap handle or black leather handle w/ footman loops
Feet: Glides
Corners: Corner Protectors
Covering Material
Tolex/Tweed: Snakeskin, Red, Sea-foam green lizard skin, and black Tolex
Grill Cloth: Silver Sparkle Grill Cloth
Logo: Grill mounted, flat, chrome & black script
Weight: 54 lbs.
Speaker
Size: 2 x 10 (8ohms each)
Impedance: 16 ohms
Model: Celestion(For more info, check out the Jensen Replacement Speakers)
Effects: Reverb, Channel Switching
~Watts: SS Rect/AB: 60 Watts ; Tube Rect/AB: 50 watts; Tube Rect/A: 30 watts
Tubes
Pre amp:
Power: 2 x 5881
Bias: Fixed Bias
Rectifier: Class A/5AR4, Class AB/5AR4, Class AB/Solid State (switchable)
Comments: The Prosonic includes a switch for changing the operation class of the amplifier. (see Rectifier)
Bassman Clean Mesa Mark IIC drive
