SUPERLOGICS 1U Rackmount Industrial PC Server 16GB RAM NO HDD - $170 (Brooklyn)
Bridge Street near John Street
QR Code Link to This Post

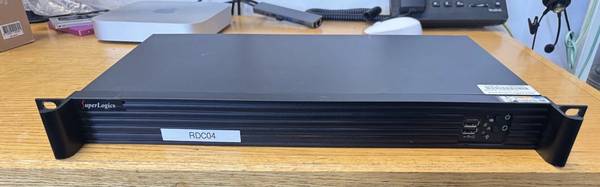

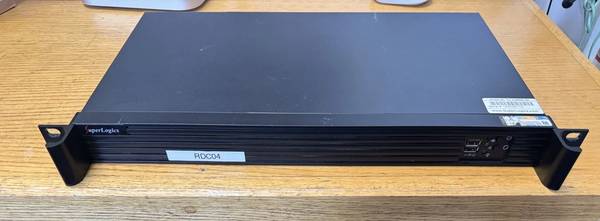

nice condition. 16gb ram, no hard drive included! used for a couple years but decided to upgrade to a different system. Comes as pictured and described. I also have four more of these units available with 500GB SSD hard drives listed separately: https://ebay.us/m/CVrl5A
Type:
1U Rack Mount Industrial PC
Depth: 11", Max Card Depth: 6.5 inches"
Motherboard:
Featuring Intel Celeron SoC and Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
LAN: 1x Ports (1GbE (10/100/1000))
Video: 1x VGA, 1x HDMI
Audio: 5.1 channel by Realtek® ALC662
Ports:
4x USB 2.0 Ports ( 1 Front, 3 Rear )
1x USB 3.2 Gen 1 Port( 1 Rear )
2x COM Ports (1 RS232 Rear, 1 RS232 Internal Headers)
1x Parallel Port (Rear)
See specifications for more ports
Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
Memory: 16GB DDR3L SODIMM RAM 1.35V
Hard Drive: NO HARD DRIVE INCLUDED
Power Supply: 150W 1U Flex ATX Power Supply
Operating System: NO OPERATING SYSTEM INCLUDED
Motherboard Model
Motherboard Type: MiniITX
Fanless
Supported CPU
Number of Processors: 1
Processor Type: Embedded CPUs (ultra-low power, soldered down)
Embedded CPU: Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
Chipset
Chipset: Intel Celeron SoC
Memory
Memory Type: SO DIMM DDR3
Memory Type: Non-ECC
DIMMS: 2
Maximum Memory: 16GB
On Board Audio
Audio Type: 5.1 channel by Realtek® ALC662
On Board Video
Video Chipset: Intel® 7th generation (Gen 7) Graphics
Video on IO: 1x VGA, 1x HDMI
VGA Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 1
LAN Type: 1GbE (10/100/1000)
LAN Chipset: Realtek® RTL8111G
Wireless LAN: No Integrated WLAN
Drive Interface
SATA II Ports (3GB): 2

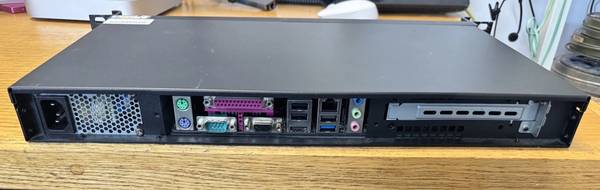

Rear IO
PS/2 Mouse on IO
PS/2 Keyboard on IO
USB 2.0 Ports (on IO): 3
USB 3.0 Ports (on IO): 1
Serial (Rear IO): 1
Parallel Ports: 1
Audio on IO
Headers
USB 2.0 Ports (on Headers): 1
Serial (via Headers): 1
FAN Connectors: 2
Audio on Headers
Chassis Intrusion
TPM Support: Via 1.2 Header
Environmental
Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
High Humidity: 90%
Low Humidity: 5%
Operating System Support
Windows 7 Ultimate (64-bit)
Windows 7 Pro (32-bit)
Windows 7 Pro (64-bit)
Windows 7 Pro (FES) 32-Bit
Windows 7 Pro (FES) 64-Bit
SL-Windows 10PRO to 7PRO 32-bit
SL-Windows 10PRO to 7PRO 64-bit
Windows Embedded 7 (32-Bit)
Windows Embedded 7 (64-Bit)
Windows 8.1 (32-bit)
Windows 8.1 (64-bit)
Windows 8.1 Pro (32-bit)
Windows 8.1 Pro (64-bit)
Windows Embedded 8 (32-bit)
Windows Embedded 8 (64-bit)
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 IoT Entry
LINUX Ubuntu Desktop
Compliance of Component
CE
FCC
Other Features
Other Features:1 x PCI Express 2.0 x1 Slot
