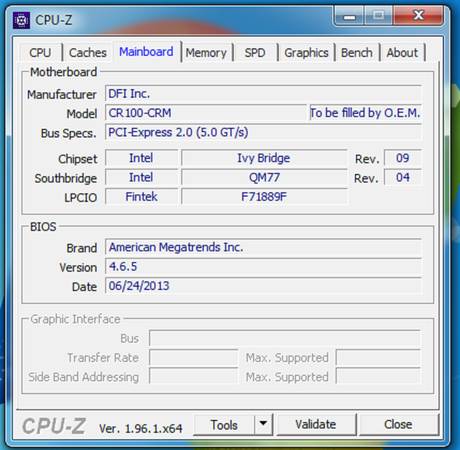

DFI ITOX CR100-CRM Mini-ITX Motherboard + I7-3610QE + 8GB HTPC NAS - $125 (Brooklyn)
4710 Glenwood Rd
QR Code Link to This Post
Good Condition.
This item has been cleaned and tested.

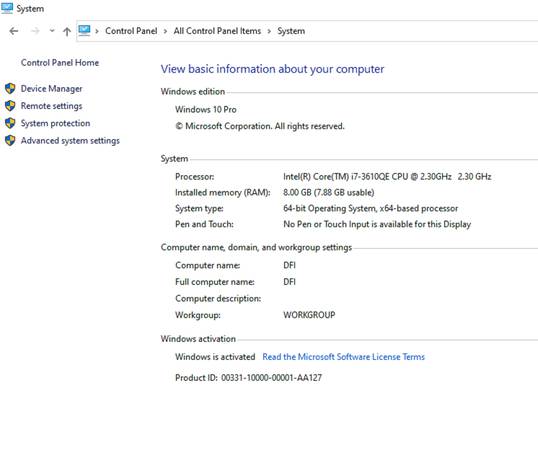

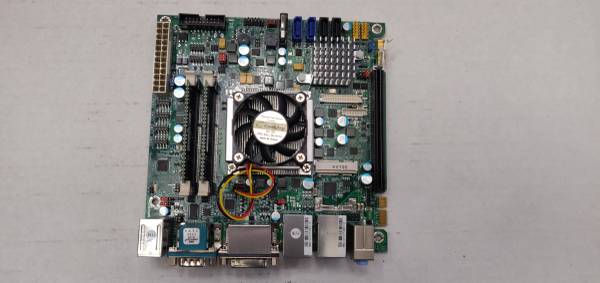

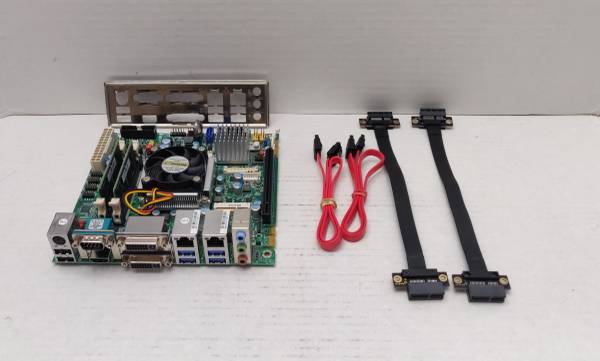

Bundles Includes Motherboard, a quad-core and eight-threaded i7-3610QE processor, 8GB DDR3 RAM( 2 x 4GB)
cooler, I/O shield, 2 Sata cable and 2 pci-e extension cable.
Specifications
PROCESSOR
• Socket G2 988B for:
- 3rd Generation Intel® CoreTM processors (22nm process technology)
: Intel® Core™ i7-3610QE (6M Cache, up to 3.3 GHz); 45W
CHIPSET
• Intel® QM77 Express chipset
SYSTEM MEMORY
• Two 204-pin SODIMM sockets
• Supports DDR3 SODIMM
• Supports DDR3L SODIMM
- 1066/1333MHz when operating at 1.35V
- 1066/1333/1600MHz when operating at 1.5V
• Supports dual channel memory interface
• Supports up to 16GB system memory
• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM technologies are
supported for x8 and x16 devices, unbuffered, non-ECC
EXPANSION SLOTS
• 1 PCIe x16 slot
- Supports Gen 3.0 (3rd generation processors)
- Supports Gen 2.0 (2nd generation processors)
- Configurations (supported only via a riser card):
: One x8 (GFX) and two x4 (I/O)
: Two x8 (GFX, I/O)
: One x16 (GFX, I/O)
• 2 DFI Proprietary Extension Bus for PCIe/PCI expansion
• 1 Mini PCIe slot (PCIe and USB signals)
- Supports half size Mini PCIe card
ONBOARD GRAPHICS FEATURES
• Intel® HD Graphics 4000
• Display ports: HDMI, 2 DVI-I (1 supports DVI-D signal only), and LVDS
• HDMI, DVI: resolution up to 1920x1200 @ 60Hz
• VGA: resolution up to 2048x1536 @ 75Hz, 32-bit
• LVDS: Single Channel - 18/24-bit; Dual Channel - 36/48-bit, resolution up to
1920x1200 @ 60 Hz
• Intel® Clear Video Technology
• DirectX Video Acceleration (DXVA) for accelerating video processing
- Full AVC/VC1/MPEG2 HW Decode
• Supports DirectX 11/10.1/10/9 and OpenGL 3.0
ONBOARD AUDIO FEATURES
• Realtek ALC886 5.1-channel High Definition Audio
• Audio outputs: Mic-in/Center+Subwoofer, line-in/surround and line-out
• S/PDIF audio interface
ONBOARD LAN FEATURES
• Intel® WG82579LM with iAMT8.0 Gigabit Ethernet Phy
• Intel® WG82574L PCI Express Gigabit Ethernet controller
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
SERIAL ATA (SATA) INTERFACE
• 4 Serial ATA ports
- 2 SATA 3.0 ports with data transfer rate up to 6Gb/s
- 2 SATA 2.0 ports with data transfer rate up to 3Gb/s
• Integrated Advanced Host Controller Interface (AHCI) controller
• Supports RAID 0/1/5/10

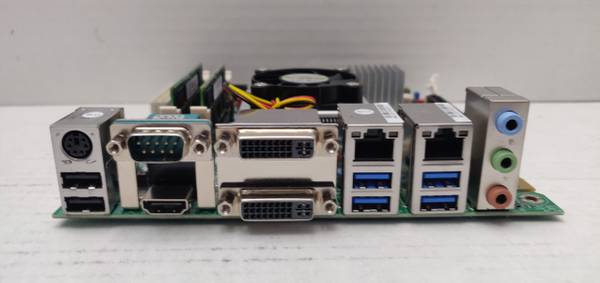

REAR PANEL I/O PORTS
• 1 mini-DIN-6 port for PS/2 mouse/keyboard
• 4 USB 3.0/2.0/1.1 ports
• 2 USB 2.0/1.1 ports
• 1 DB-9 serial port
- Supports RS232/422/485 (RS232 and/or Power)
• 1 HDMI port
• 2 DVI-I ports (1 supports DVI-D signal)
• 2 RJ45 LAN ports
• Line-in/surround, Line out, and Mic-in/Center+Subwoofer jacks
I/O CONNECTORS
• 2 connectors for 4 external USB 2.0/1.1 ports
• 5 connectors for 5 external serial ports
- 1 RS232/422/485 (RS232 and/or Power); 4 RS232
• 1 LVDS LCD panel connector
• 1 LCD/inverter power connector
• 1 8-bit Digital I/O connector
• 1 front audio connector for line-out and mic-in jacks
• 1 S/PDIF connector
• 4 Serial ATA ports (2 SATA 3.0; 2 SATA 2.0)
• 1 24-pin ATX power connector
• 1 chassis intrusion connector
• 1 front panel connector
