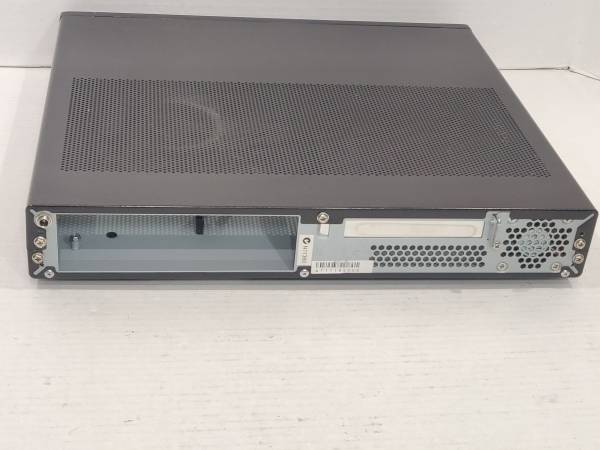

SilverStone Lascala LC19 HTPC Slim Case * Black * with DVDRW & Power - $120 (Brooklyn)
4710 Glenwood Rd
QR Code Link to This Post

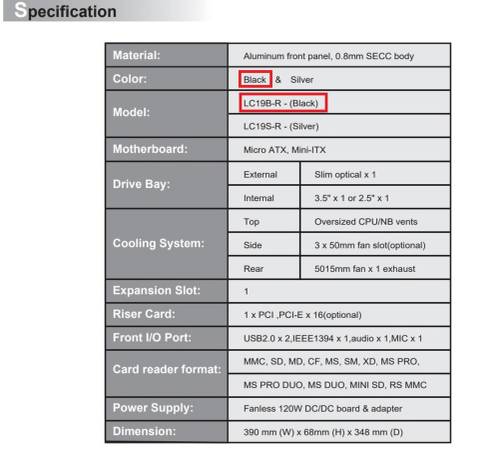

Model No.
SST-LC19B-R (black + card reader)
Material
Aluminum front panel, 1.0mm SECC body (LC19R:0.8mm)
Color
Black
Motherboard
MoDT Micro ATX, Mini-ITX, DTX
Drive bay
External
Slim optical x 1
Internal
3.5" x 1 or 2.5" x 1 (vibration dampening)( LC19R only )
Cooling system
Rear
1 x 50mm exhaust fan, 2200rpm, 19dBA ( LC19R only )
Top
Oversized CPU/NB vents

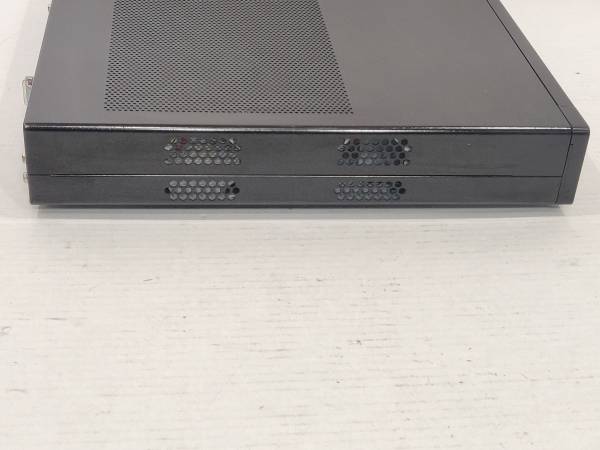

Side
3 x 50mm fan slots ( LC19R only )
Limitation of CPU cooler
37mm
Expansion slot
1 (includes 1 x PCI riser card and 1 x PCI-Ex16 riser card) for LC19R
Limitation of expansion card
, width restriction-6.8”
Power supply
Fanless 120W DC/DC board & AC adapter
Limitation of PSU
DC board with external adapter
Front I/O port
USB 2.0 x 2
IEEE1394 x 1
audio x 1
MIC x 1
52-in-1 card reader (LC19R only)
Dimension
390 mm (W) x 68 mm (H) x 348 mm (D), 9.2 liters
15.35" (W) x 2.68" (H) x 13.7" (D), 9.2 liters
Net weight
4.59kg (LC19B-R, LC19S-R)
Extra

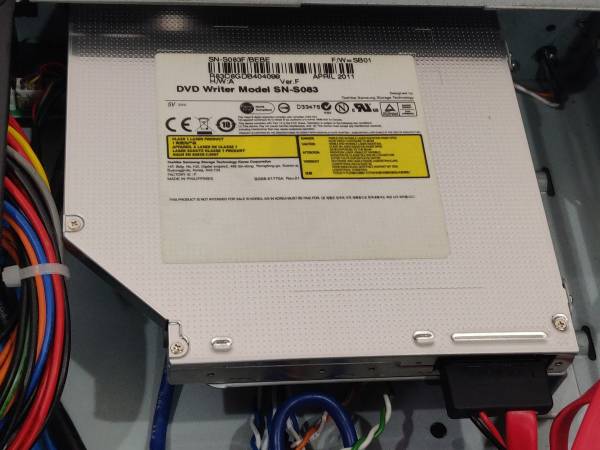

Slim optical drive
＊MoDT motherboard recommended.
＊CPU cooler cannot exceed 37mm in height.
＊Card reader support
Smart Media -
SM, SSFDC, SM Ram, XD
Compact Flash -
CF I, CF II, Hitachi Microdrive, IBM Microdrive, Magicstor, HS-CF, Extreme CF, Extreme III CF, Ultra CF, Ultra II CF, Ultra-X CF
Secure Digital-
SD, HS SD, Extreme SD, Extreme III SD, Ultra SD, Ultra II SD, Ultra II SD plus, SD Elite Pro, *Mini-SD, *Micro SD, *T Flash, *C-Flash, SDHC card
Multimedia -
MMCI, MMCII, HS MMC, DV-RS-MMC, *MMC Mobile, *RS MMC, *RS MMC Mobile, *HS RS MMC
Memodery Stick -
MS, MS Magic Gate, MS Pro, MS Pro(MG), Extreme MS Pro, Extreme III MS Pro, HS MS Pro, HS MS MG Pro, MS Select, MS Pro Ultra II, *MS Duo, *MS Duo(MG), *MS Pro Duo, *MS Pro Duo(MG), *HS MS Pro Duo, * HS MS MG Pro Duo, *MS Pro Duo Ultra II, * MS Rom
