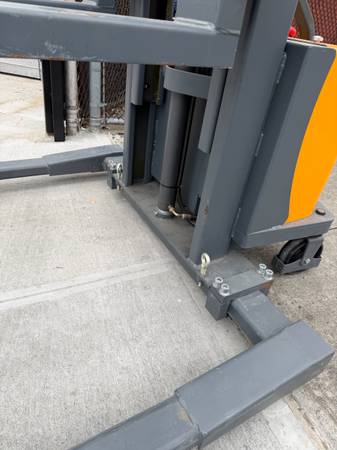

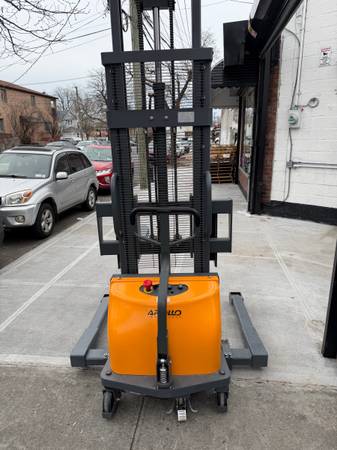

Used Semi-Electric Straddle Stacker 3300Lbs Cap.118" Lifting A-3010 - $3,750 (Brooklyn)
condition:
excellent
engine hours (total):
216
make / manufacturer:
Apollo
model name / number:
A-3010
QR Code Link to This Post
Most powerful semi-electric option in this set: Higher-voltage platform for buyers who want stronger performance feel. battery spec 24V/120Ah
Heavy capacity for real pallet work: Built for demanding loads and daily stacking cycles. capacity 3300 lbs
Standard lift height for everyday racking: Great for common shelving and staging tasks. max lift height 118", mast lowered height 84.4"
Closed-deck safe and flexible across pallet types: Straddle legs keep it compatible in mixed pallet environments. support leg type Straddle, compatible pallet types All
Good for busier warehouses and longer days: A better fit when the machine will see consistent use. charger 24V/15A built-out, aisle width 97.3"
Specifications
Capacity
3300 lbs.
Aisle Width
97.3"
Max.Lifting Height
118"
Inside Distance Between Forks
0.4-25.4"
Fork Length
42"
Fork Overall Width
11.6-36.6"
Single Fork Width
5.6"
Compatible Pallet Types
All
Overall Height
84.4-141.7"
Overall Length
72.2"
Overall Width
45.4-60"
Lifting Speed/Empty
3.9 inch/s
Lifting Speed/Loaded
2.7 inch/s
Support Leg Type
Straddle
Total Wheel Count
4
Turning Radius
59.3"
Mast Lowered Height
84.4"
Mast Extended Height
141.7"
Load Centre Distance
19.7"
Battery Capacity
120AH
Battery Spec
24V/120AH
Battery Voltage
24V
Fork Thickness
2.4"
Fork Lowered Height
3.2"
Lowering Speed/Empty
5.9 inch/s
Lowering Speed/Loaded
4.7 inch/s
Service Weight
1330 lbs.
Gross Weight
1340 lbs.
Charger
24V/15A built-out
