Pioneer SX 9000 receiver vintage Exellent working condition - $750 (Brooklyn)
QR Code Link to This Post
Pioneer SX-9000 receiver stands out as one of the most distinctive receivers from the early '70s. This is not just a receiver — it’s a hybrid integrated amplifier + tuner with built-in reverberation, dual preamp stages, and advanced tone controls. Delivering a solid 50 watts per channel, the SX-9000 offers rich analog depth and spatial imaging that few receivers from its era can match.

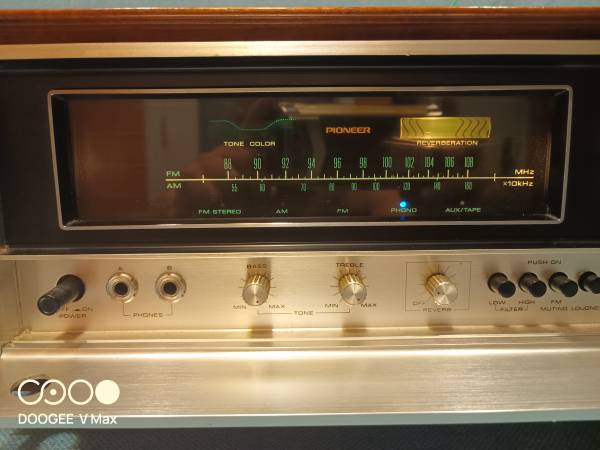

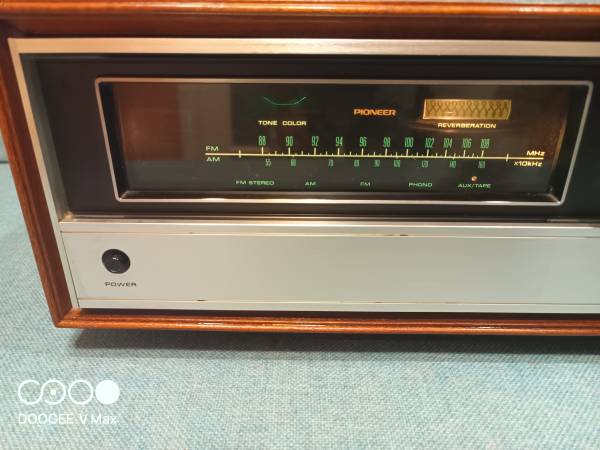

Its silver faceplate is packed with unique controls, from a full EQ section to a blendable reverb circuit for added room ambiance.
Serviced
All controls cleaned lubricated
Cabinet Exellent condition no scratches or damages
All original condition! All lights work
Sound Exellent
There Rare receiver
FM reception works perfect
50 watts per channel + 3 pairs speakers connection
Free delivery available around Brooklyn
Specifications
Tuning range: FM, MW
Power output: 50 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 35kHz
Total harmonic distortion: 0.5%
Damping factor: 30
Input sensitivity: 1.6mV (mic), 2.5mV (MM), 160mV (DIN), 160mV (line)
Signal to noise ratio: 80dB (MM), 100dB (line)
Output: 0.5V (Pre out)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 5 x IC, 1 x FET, 53 x transistors, 22 x diodes
Dimensions: 522 x 194 x 344mm
